Specification

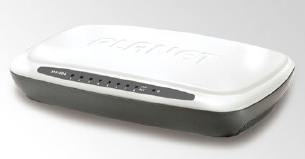

Model GSD-504  Hardware Specification Hardware Version 5 Network Ports 5-Port 10/100/1000Mbps RJ-45 with Auto-MDI / MDI-X Switch Architecture Store and Forward Switch Fabric 10Gbps Switch Throughput 7.4Mpps Address Table 8K Entries Share Data Buffer 1Mbits Flow Control Back pressure for Half Duplex, IEEE 802.3x Pause Frame for Full Duplex Dimension (W x D x H) 176 x 106 x 30 mm Weight 200g (Plastic case) Power Requirement 12V DC, 1A Power Consumption / Dissipation 3.4Watts / 12 BTU Temperature Operating: 0~50 Degree C Storage: -40~70 Degree C Humidity Operating:10~90% Storage: 5~95% (Non-condensing) Standard Conformance Regulation Compliance FCC Part 15 Class A, CE Standards Compliance IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3x (Full-duplex Flow control)
